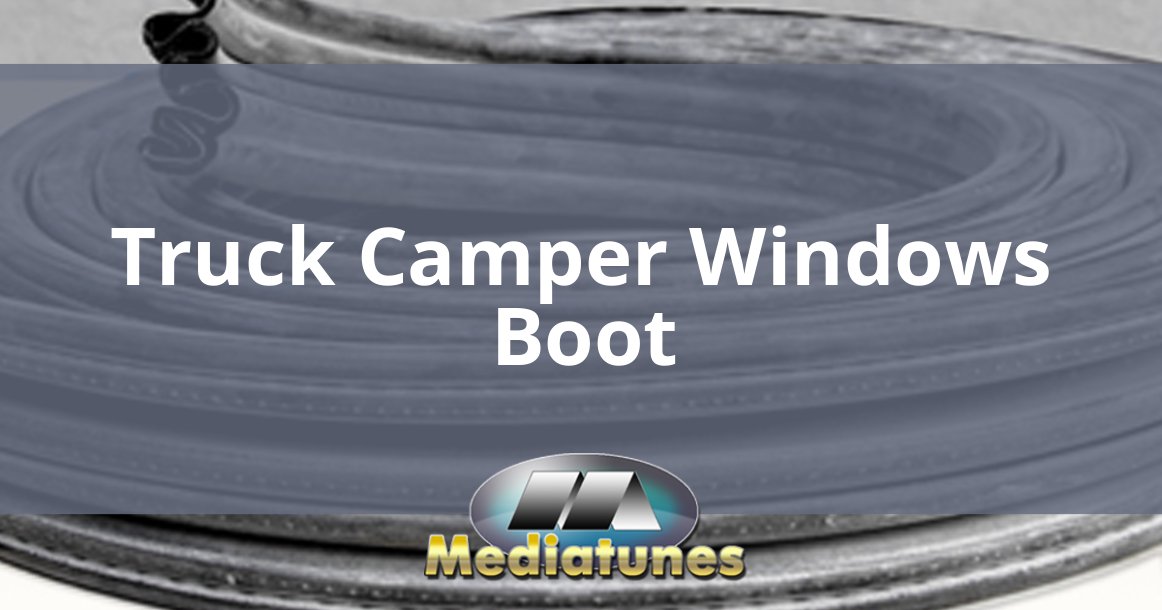

Truck Camper Windows Boot
How to Choose the Right Rubber Boot Seal
You can obtain rubber boot material for your special project. This seal is extruded from hard-wearing EPDM synthetic rubber substance and incorporates a pliable spring steel clip for attaching to any rim. This material is available by the foot. To determine how much you need measure the length around your cab opening. You have three choices of rubber to apply for sealing your cabs together.
Tips for Getting the Right Fit
To specify how much you want measure the length around your cab opening. It is imperative that both openings are perfectly the same size. Make sure to measure the opening before ordering. Every installation is different.
Universal Fit: Compatible Rubber Seals for Trucks and Rigs
This rubber boot seal is typically used in cab pass-through conversions. It's suitable for most mini trucks. Whether you're retrofitting a camper shell or building a DIY rig, this seal offers universal fitment and dependable performance for your cab connection project.
Truck Camper Windows Boot Features and Benefits
| Feature | Benefit | Use Case |
|---|---|---|
| Forgiving Fit | Can accommodate minor mismatches in height and width | Useful for older vehicles or hand-cut openings |
| Silicone-Friendly Seam Sealing | Easy to seal end joints with a small bead of silicone | Ensures total waterproofing where ends come together |
| Affordable, High-Value Solution | Great quality at a competitive price point | Cost-effective choice for budget-conscious builders |
Order Form
To begin your order just enter the total amount of feet of boot material you need in the appropriate box next to the item you want to order below. Check your entries then click on the "Order Now " button.
Accordion Boot - Part Number 541
The accordion boot is designed for cabs where you take out the truck window. This product works best with fiberglass shells that are 1/8" to 3/16" thick. Please note that both openings must be exactly the same size for this boot to fit properly.
$8.95 per foot
In Stock
Order 541
- Enter the total amount of feet of boot material you need in the text box
- Check your entries, then click on the "Order Now" button.
Compression Boot - Part Number 540
Use this seal when you leave the rear slider window in the truck. This product works best with fiberglass shells that are 1/8" to 3/16" thick. You will also use this boot if the opening in the fiberglass shell is much larger than the opening in your truck.
$7.95 per foot
In Stock
Order 540
- Enter the total amount of feet of boot material you need in the text box
- Check your entries, then click on the "Order Now" button.
Extra Wide Accordion Boot - Part Number 543
The extra wide accordion boot is designed applications where you have a large gap between the space you want to seal. This product works best with fiberglass shells or sheet metal flange that are 1/8" to 3/16" thick. Both openings must be exactly the same size for this boot to fit properly.
$11.50 per foot
In Stock
Order 543
- Enter the total amount of feet of boot material you need in the text box
- Check your entries, then click on the "Order Now" button.
Accordion Boot - Ultra Wide 10" Part Number 544
The Ultra Wide 10 Inch accordion boot is designed for very wide gaps between cabs.. This product works best with fiberglass shells that are 1/8" to 3/16" thick. Please note that both openings must be exactly the same size for this boot to fit properly.
$13.90 per foot
In Stock
Order 544
- Enter the total amount of feet of boot material you need in the text box
- Check your entries, then click on the "Order Now" button.
Accordion Boot 15 - Part Number 546
The Accordion Boot 15 is designed applications where you have a large gap between the space you want to seal. This product works best with fiberglass shells or sheet metal flange that are 1/8" to 3/16" thick. Both openings must be exactly the same size for this boot to fit properly.
$16.50 per foot
In Stock
Order 546
- Enter the total amount of feet of boot material you need in the text box
- Check your entries, then click on the "Order Now" button.
Compression Bulb Seal - Part Number 545
Use this seal when you leave the rear slider window in the truck. This product works best with fiberglass shells that are 1/8" to 3/16" thick. You will also use this boot if the opening in the fiberglass shell is much larger than the opening in your truck.
$8.25 per foot
In Stock
Order 545
- Enter the total amount of feet of boot material you need in the text box
- Check your entries, then click on the "Order Now" button.
Frequently Asked Questions
- Can I install a truck camper windows boot in cold weather?
Yes, but it's best to warm the truck camper windows boot slightly beforehand. Cold temperatures may make the rubber less flexible and harder to manipulate during installation.
- Is it suitable for sealing between an airbag mounted truck cab and the body hard mounted to chassis rails on a truck?
As long as there is some sort of flange or wall to install the boot it should work. The thickness of the flange should not exceed 3/16" (4.7625mm) The accordion design allows for independent movement or flex between the cab bodies.
- What do you recommend is the smallest radius cut out in the corners of the opening?
The recommended minimum radius is 1 inch for the boot for corners.
