Accordion Boot

Replace Your Worn Out Camper Boot Seal with your choice of Accordion Boot or Compression Boot Gasket Material.

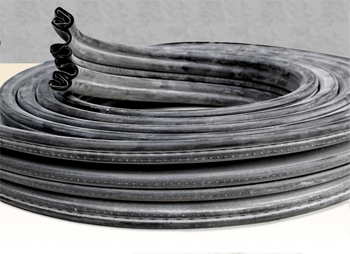

Accordion Boot Roll

You can get rubber boot material to replace old worn out rubber. These seals are extruded from a durable EPDM synthetic rubber compound and incorporate a flexible spring steel clip for attachment to any flange. This material is sold by the foot. To determine how much you need measure the distance around your opening. You have three choices of rubber to use for sealing your cabs together:

Ordering Instructions

First you will need to determine how much accordion boot gasket material you need. Just measure around the truck's rear window opening. Once you know how much you need enter that amount in whole numbers in the order form.

When you are ready to place your order just click on the "ORDER NOW " button. You will be guided though the order procedure.  All orders are processed though the web site through Paypal. To order you must use the order form.

How much will you need?

This material is sold by the foot. Unlike other companies that force you to buy more than you need. You get the exact amount you need. No waste.

To determine how much you need measure the distance around your cab opening. It is important that both openings are exactly the same size. The average full-size pickup truck rear window opening is approximately 13 - 14 feet around. The average mini-truck is approximately 10 feet around the window opening.

You can also click here to use this online calculator to help you determine how much material you require for your project.

Request Boot Samples

If you are uncertain if the boot will work in your specific installation or application save frustration and get a sample pack of rubber boot. Go Here to Request Boot Samples

Ordering Instructions

First you will need to determine how much accordion boot gasket material you need. Just measure around the truck's rear window opening. Once you know how much you need enter that amount in whole numbers in the order form.

When you are ready to place your order just click on the "ORDER NOW " button. You will be guided though the order procedure.  All orders are processed though the website through Paypal. To order you must use the order form.

Scroll Down for more options

Accordion Boot - Part Number 541

Accordion Boot

The accordion boot is designed for cabs where you take out the truck window. This product works best with fiberglass shells that are 1/8" to 3/16" thick. Please note that both openings must be exactly the same size for this boot to fit properly.

How Accordion Boot Works Animation

$8.50 per foot

In Stock

Order 541

  1. Enter the total amount of feet of boot material you need in the text box
  2. Check your entries, then click on the "Order Now" button.
Enter # of Feet

Compression Boot - Part Number 540

Compression Boot

Use this seal when you leave the rear slider window in the truck. This product works best with fiberglass shells that are 1/8" to 3/16" thick. You will also use this boot if the opening in the fiberglass shell is much larger than the opening in your truck.

How Compression Boot Works Animation

$7.75 per foot

In Stock

Order 540

  1. Enter the total amount of feet of boot material you need in the text box
  2. Check your entries, then click on the "Order Now" button.
Enter # of Feet

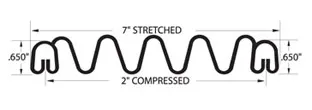

Extra Wide Accordion Boot - Part Number 543

Extra Wide Accordion Boot

The extra wide accordion boot is designed applications where you have a large gap between the space you want to seal. This product works best with fiberglass shells or sheet metal flange that are 1/8" to 3/16" thick. Both openings must be exactly the same size for this boot to fit properly.

$10.85 per foot

In Stock

Order 543

  1. Enter the total amount of feet of boot material you need in the text box
  2. Check your entries, then click on the "Order Now" button.
Enter # of Feet

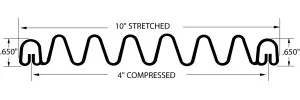

Accordion Boot - Ultra Wide 10" Part Number 544

Accordion Boot 10 inch wide

The Ultra Wide 10 Inch accordion boot is designed for very wide gaps between cabs.. This product works best with fiberglass shells that are 1/8" to 3/16" thick. Please note that both openings must be exactly the same size for this boot to fit properly.

$13.90 per foot

In Stock

Order 544

  1. Enter the total amount of feet of boot material you need in the text box
  2. Check your entries, then click on the "Order Now" button.
Enter # of Feet

Accordion Boot 15 - Part Number 546

Extra Wide Accordion Boot

The Accordion Boot 15 is designed applications where you have a large gap between the space you want to seal. This product works best with fiberglass shells or sheet metal flange that are 1/8" to 3/16" thick. Both openings must be exactly the same size for this boot to fit properly.

$16.50 per foot

In Stock

Order 546

  1. Enter the total amount of feet of boot material you need in the text box
  2. Check your entries, then click on the "Order Now" button.
Enter # of Feet

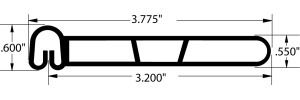

Compression Bulb Seal - Part Number 545

Compression Bulb Seal

Use this seal when you leave the rear slider window in the truck. This product works best with fiberglass shells that are 1/8" to 3/16" thick. You will also use this boot if the opening in the fiberglass shell is much larger than the opening in your truck.

$7.75 per foot

In Stock

Order 545

  1. Enter the total amount of feet of boot material you need in the text box
  2. Check your entries, then click on the "Order Now" button.
Enter # of Feet

Here are the properties of the EPDM Rubber material - Excellent weatherability, good high and low temperature resistance, low gas permeability. Resistant to ozone, steam, water, alcohols, brake fluids. Poor resistance to petroleum oils, diester lubricants. Temperature range: -60°F to 280°F. As you can see this is a superior material for your camper seal.

Product: Accordion, Rubber Boot, Camper Boot Seal, Camper Shell Window Boot, Camper Boot, Truck Camper Boot, Boot Seal, Fiberglass Shells
