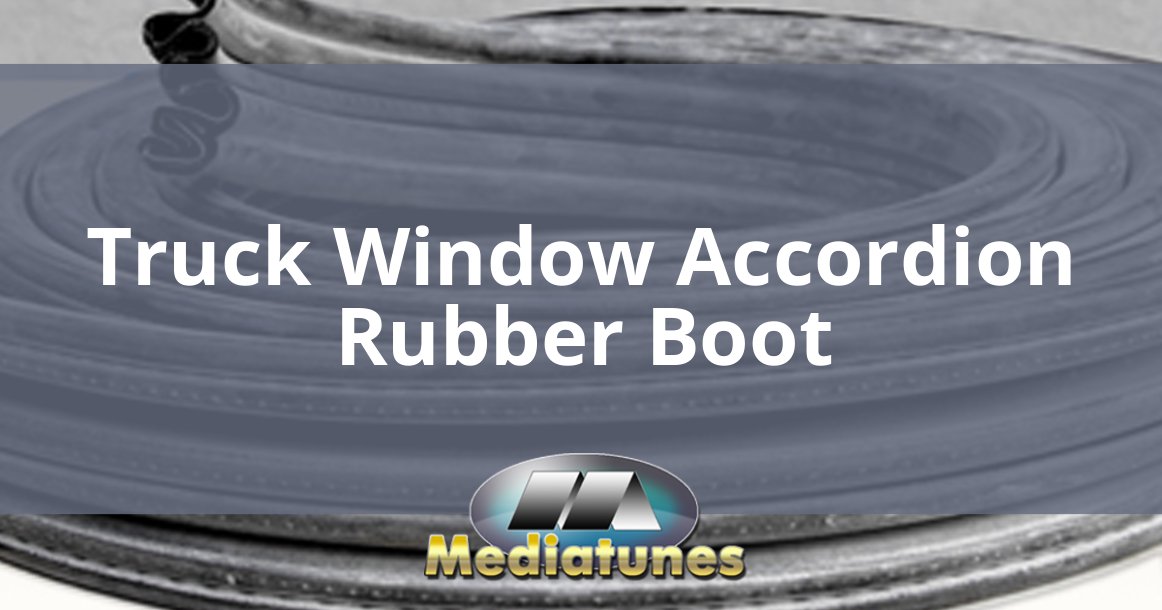

Truck Window Accordion Rubber Boot
How to Choose the Right Rubber Boot Seal
You can acquire rubber boot material for your special project. This seal is manufactured from resilient EPDM synthetic rubber substance and contains a bendable spring steel clip for affixing to any flange. This material is available by the foot. To ascertain how much you need measure the distance around your cab opening. You get 3 alternatives of rubber to employ for waterproofing your cabs together.
Quick and Easy Installation
Installing this rubber boot is user-friendly and can be done with few tools. Just secure the seal firmly onto the rim of the window or pass through opening. This forms a weatherproof connection between the two units. Whether you're traveling, this seal keeps out wind and helps temperature control during your journey.
Don't Settle for Less: Upgrade to a Seal Built for the Road
Choosing the right seal is important for your vehicle project. This rubber boot stands out due to its superior construction and real-world reliability. We focus on providing products that surpass your needs for long-term satisfaction. Don't settle for inferior seals, upgrade to one that's engineered for adventure.
Truck Window Accordion Rubber Boot Features and Benefits
| Feature | Benefit | Use Case |
|---|---|---|
| Compressed and Expanded Flex | Adapts to body movement and misalignments | Maintains seal during travel, loading, or frame shifts |
| Supports Walk-Through Conversions | Lets you convert separate spaces into one continuous interior | Used in van builds, campers, and custom sleeper cabs |
| Forgiving Fit | Can accommodate minor mismatches in height and width | Useful for older vehicles or hand-cut openings |
Order Form
To begin your order just enter the total amount of feet of boot material you need in the appropriate box next to the item you want to order below. Check your entries then click on the "Order Now " button.
Accordion Boot - Part Number 541
The accordion boot is designed for cabs where you take out the truck window. This product works best with fiberglass shells that are 1/8" to 3/16" thick. Please note that both openings must be exactly the same size for this boot to fit properly.
$8.95 per foot
In Stock
Order 541
- Enter the total amount of feet of boot material you need in the text box
- Check your entries, then click on the "Order Now" button.
Compression Boot - Part Number 540
Use this seal when you leave the rear slider window in the truck. This product works best with fiberglass shells that are 1/8" to 3/16" thick. You will also use this boot if the opening in the fiberglass shell is much larger than the opening in your truck.
$7.95 per foot
In Stock
Order 540
- Enter the total amount of feet of boot material you need in the text box
- Check your entries, then click on the "Order Now" button.
Extra Wide Accordion Boot - Part Number 543
The extra wide accordion boot is designed applications where you have a large gap between the space you want to seal. This product works best with fiberglass shells or sheet metal flange that are 1/8" to 3/16" thick. Both openings must be exactly the same size for this boot to fit properly.
$11.50 per foot
In Stock
Order 543
- Enter the total amount of feet of boot material you need in the text box
- Check your entries, then click on the "Order Now" button.
Accordion Boot - Ultra Wide 10" Part Number 544
The Ultra Wide 10 Inch accordion boot is designed for very wide gaps between cabs.. This product works best with fiberglass shells that are 1/8" to 3/16" thick. Please note that both openings must be exactly the same size for this boot to fit properly.
$13.90 per foot
In Stock
Order 544
- Enter the total amount of feet of boot material you need in the text box
- Check your entries, then click on the "Order Now" button.
Accordion Boot 15 - Part Number 546
The Accordion Boot 15 is designed applications where you have a large gap between the space you want to seal. This product works best with fiberglass shells or sheet metal flange that are 1/8" to 3/16" thick. Both openings must be exactly the same size for this boot to fit properly.
$16.50 per foot
In Stock
Order 546
- Enter the total amount of feet of boot material you need in the text box
- Check your entries, then click on the "Order Now" button.
Compression Bulb Seal - Part Number 545
Use this seal when you leave the rear slider window in the truck. This product works best with fiberglass shells that are 1/8" to 3/16" thick. You will also use this boot if the opening in the fiberglass shell is much larger than the opening in your truck.
$8.25 per foot
In Stock
Order 545
- Enter the total amount of feet of boot material you need in the text box
- Check your entries, then click on the "Order Now" button.
Frequently Asked Questions
- Will the truck window accordion rubber boot work with thin metal or wood frames?
Yes, but there must be a flange no thicker than 3/16". For wood or thick materials, add a metal strip (like aluminum flat bar) around the opening for the truck window accordion rubber bootto grip.
- How do I know if I need a truck window accordion rubber boot or a compression boot?
Use a truck window accordion rubber bootwhen both openings are identical in size and shape. Use a compression boot if there are size differences or no solid flange available.
- How much will I need?
This material is sold by the foot. Unlike other companies that force you to buy more than you need. You get the exact amount you need. No waste. To determine how much you need measure the distance around your cab opening. It is important that both openings are exactly the same size. The average full-size pickup truck rear window opening is approximately 13 - 14 feet around. The average mini-truck is approximately 10 feet around the window opening.
