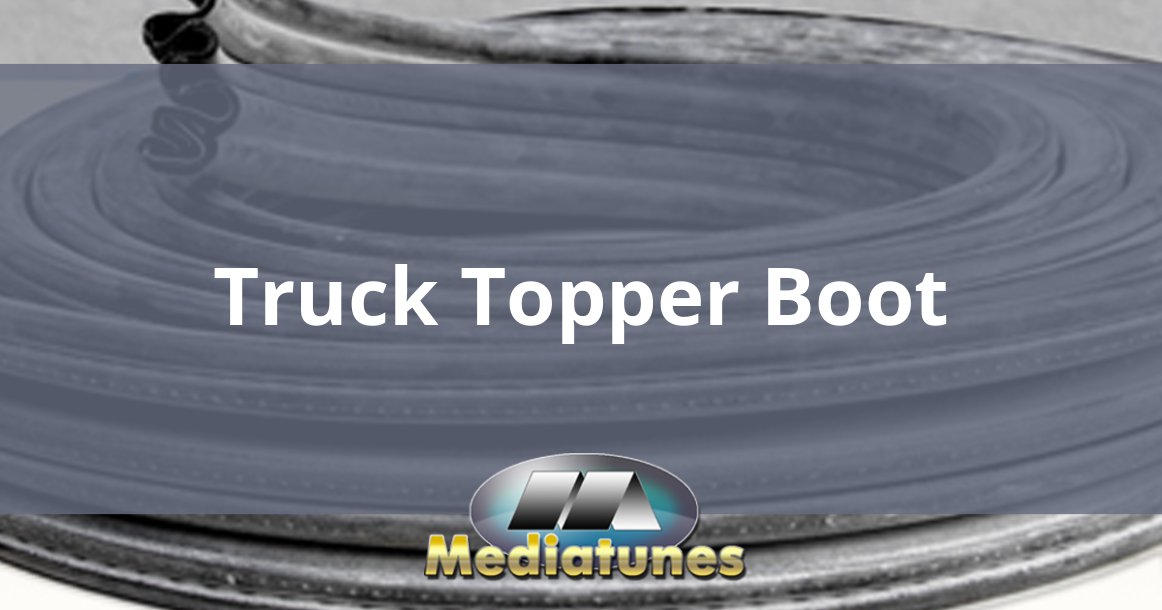

Truck Topper Boot
How to Choose the Right Rubber Boot Seal
You can buy rubber boot material for your special project. This seal is manufactured from long-lasting EPDM synthetic rubber substance and incorporates a bendable spring steel clip for fastening to any rim. This material is available by the foot. To ascertain how much you need measure the distance around your cab opening. You have 3 choices of rubber to make use of for sealing your cabs together.
Quick and Easy Installation
Installing this rubber boot is hassle-free and requires minimal tools. Just secure the seal tightly onto the frame of the window or pass through opening. This ensures a secure connection between the two units. Even if you're hauling, this seal blocks rain and helps a dry space during your journey.
Universal Fit: Compatible Rubber Seals for Trucks and Rigs
This rubber boot seal is often used in vehicle sealing applications. It's fits most mid-size trucks. Whether you're repairing a camper shell or building a custom rig, this seal offers versatile fitment and dependable performance for your cab connection project.
Truck Topper Boot Features and Benefits
| Feature | Benefit | Use Case |
|---|---|---|
| Compressed and Expanded Flex | Adapts to body movement and misalignments | Maintains seal during travel, loading, or frame shifts |
| Silicone-Friendly Seam Sealing | Easy to seal end joints with a small bead of silicone | Ensures total waterproofing where ends come together |
| Embedded Steel Spring Clip | Maintains a secure grip on flanges without adhesive | Stable connection between cab and shell |
Order Form
To begin your order just enter the total amount of feet of boot material you need in the appropriate box next to the item you want to order below. Check your entries then click on the "Order Now " button.
Accordion Boot - Part Number 541
The accordion boot is designed for cabs where you take out the truck window. This product works best with fiberglass shells that are 1/8" to 3/16" thick. Please note that both openings must be exactly the same size for this boot to fit properly.
$8.95 per foot
In Stock
Order 541
- Enter the total amount of feet of boot material you need in the text box
- Check your entries, then click on the "Order Now" button.
Compression Boot - Part Number 540
Use this seal when you leave the rear slider window in the truck. This product works best with fiberglass shells that are 1/8" to 3/16" thick. You will also use this boot if the opening in the fiberglass shell is much larger than the opening in your truck.
$7.95 per foot
In Stock
Order 540
- Enter the total amount of feet of boot material you need in the text box
- Check your entries, then click on the "Order Now" button.
Extra Wide Accordion Boot - Part Number 543
The extra wide accordion boot is designed applications where you have a large gap between the space you want to seal. This product works best with fiberglass shells or sheet metal flange that are 1/8" to 3/16" thick. Both openings must be exactly the same size for this boot to fit properly.
$11.50 per foot
In Stock
Order 543
- Enter the total amount of feet of boot material you need in the text box
- Check your entries, then click on the "Order Now" button.
Accordion Boot - Ultra Wide 10" Part Number 544
The Ultra Wide 10 Inch accordion boot is designed for very wide gaps between cabs.. This product works best with fiberglass shells that are 1/8" to 3/16" thick. Please note that both openings must be exactly the same size for this boot to fit properly.
$13.90 per foot
In Stock
Order 544
- Enter the total amount of feet of boot material you need in the text box
- Check your entries, then click on the "Order Now" button.
Accordion Boot 15 - Part Number 546
The Accordion Boot 15 is designed applications where you have a large gap between the space you want to seal. This product works best with fiberglass shells or sheet metal flange that are 1/8" to 3/16" thick. Both openings must be exactly the same size for this boot to fit properly.
$16.50 per foot
In Stock
Order 546
- Enter the total amount of feet of boot material you need in the text box
- Check your entries, then click on the "Order Now" button.
Compression Bulb Seal - Part Number 545
Use this seal when you leave the rear slider window in the truck. This product works best with fiberglass shells that are 1/8" to 3/16" thick. You will also use this boot if the opening in the fiberglass shell is much larger than the opening in your truck.
$8.25 per foot
In Stock
Order 545
- Enter the total amount of feet of boot material you need in the text box
- Check your entries, then click on the "Order Now" button.
Frequently Asked Questions
- Is the truck topper boot reusable if I remove it?
While technically reusable, removal often deforms the material or compromises the embedded clip, so we recommend replacing it if removed.
- Would I need to use a silicon sealant to make sure the boot would not leak?
No, you do not need to use any additional sealant when installing the rubber boot.
- What do you recommend is the smallest radius cut out in the corners of the opening?
The recommended minimum radius is 1 inch for the boot for corners.
