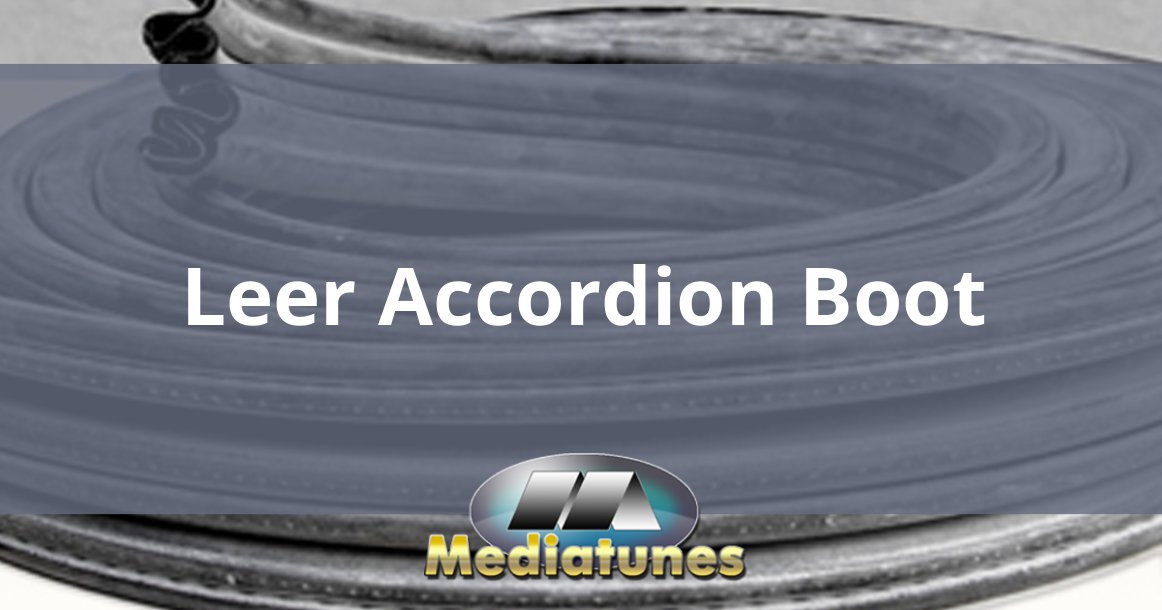

Leer Accordion Boot
How to Choose the Right Rubber Boot Seal
You can get rubber boot material for your special project. This seal is extruded from heavy-duty EPDM synthetic rubber compound and has a flexible spring steel clip for fastening to any flange. This material is available by the foot. To determine how much you need measure the distance encircling your cab opening. You have several alternatives of rubber to use for waterproofing your cabs together.
Quick and Easy Installation
Installing this rubber boot is simple and can be done with few tools. Just secure the seal firmly onto the thin wall of the window or pass through opening. This ensures a tight connection between the two units. Whether you're adventuring, this seal blocks dust and ensures temperature control during your journey.
Why EPDM Rubber Is the Best Choice for Long-Lasting Seals
The EPDM rubber seal is crafted to withstand rugged conditions such as sunlight. It's perfect for both daily use. Compared to generic seals, this material retains flexibility. It's a reliable option for anyone looking to protect their truck cab connection with a dependable sealing solution.
Leer Accordion Boot Features and Benefits
| Feature | Benefit | Use Case |
|---|---|---|
| Reusable with Careful Removal | Can be reinstalled without damage if no adhesive used | Ideal for resprays, upgrades, or camper swaps |
| Adapts to Slightly Uneven Openings | Flexible enough to seal even when openings aren’t perfectly aligned | Even though it is best that the opening match exactly there is some wiggle room to make minor adjustments for custom truck and canopy installations |
| Compressed and Expanded Flex | Adapts to body movement and misalignments | Maintains seal during travel, loading, or frame shifts |
Order Form
To begin your order just enter the total amount of feet of boot material you need in the appropriate box next to the item you want to order below. Check your entries then click on the "Order Now " button.
Accordion Boot - Part Number 541
The accordion boot is designed for cabs where you take out the truck window. This product works best with fiberglass shells that are 1/8" to 3/16" thick. Please note that both openings must be exactly the same size for this boot to fit properly.
$8.95 per foot
In Stock
Order 541
- Enter the total amount of feet of boot material you need in the text box
- Check your entries, then click on the "Order Now" button.
Compression Boot - Part Number 540
Use this seal when you leave the rear slider window in the truck. This product works best with fiberglass shells that are 1/8" to 3/16" thick. You will also use this boot if the opening in the fiberglass shell is much larger than the opening in your truck.
$7.95 per foot
In Stock
Order 540
- Enter the total amount of feet of boot material you need in the text box
- Check your entries, then click on the "Order Now" button.
Extra Wide Accordion Boot - Part Number 543
The extra wide accordion boot is designed applications where you have a large gap between the space you want to seal. This product works best with fiberglass shells or sheet metal flange that are 1/8" to 3/16" thick. Both openings must be exactly the same size for this boot to fit properly.
$11.50 per foot
In Stock
Order 543
- Enter the total amount of feet of boot material you need in the text box
- Check your entries, then click on the "Order Now" button.
Accordion Boot - Ultra Wide 10" Part Number 544
The Ultra Wide 10 Inch accordion boot is designed for very wide gaps between cabs.. This product works best with fiberglass shells that are 1/8" to 3/16" thick. Please note that both openings must be exactly the same size for this boot to fit properly.
$13.90 per foot
In Stock
Order 544
- Enter the total amount of feet of boot material you need in the text box
- Check your entries, then click on the "Order Now" button.
Accordion Boot 15 - Part Number 546
The Accordion Boot 15 is designed applications where you have a large gap between the space you want to seal. This product works best with fiberglass shells or sheet metal flange that are 1/8" to 3/16" thick. Both openings must be exactly the same size for this boot to fit properly.
$16.50 per foot
In Stock
Order 546
- Enter the total amount of feet of boot material you need in the text box
- Check your entries, then click on the "Order Now" button.
Compression Bulb Seal - Part Number 545
Use this seal when you leave the rear slider window in the truck. This product works best with fiberglass shells that are 1/8" to 3/16" thick. You will also use this boot if the opening in the fiberglass shell is much larger than the opening in your truck.
$7.95 per foot
In Stock
Order 545
- Enter the total amount of feet of boot material you need in the text box
- Check your entries, then click on the "Order Now" button.
Frequently Asked Questions
- Will the leer accordion boot work on a walk-through truck conversion?
Yes! This is a perfect use case. The leer accordion boot allows you to join the truck cab and camper shell or utility box with a weather-sealed, flexible connection.
- Would I need to use a silicon sealant to make sure the boot would not leak?
No, you do not need to use any additional sealant when installing the rubber boot.
- How thick is the accordion boot rubber?
The thickness of the rubber it is about 3/32" thick. (2.38mm).
